Enter the FK-01 integrated fork
Enter the FK-01 integrated fork
With the rise of full internal cable routing becoming the current standard in the cycling industry, there's a growing need for solutions that can adapt to partially internally routed frames.

Currently,there are two primary types of integrated cable routing designs:

Standard 28.6mm Steerer Tube with Large Headset
Featuring a 28.6mm steerer tube with a large headset. Better compatibility with various components but looks bulky, especially on metal frames.
Link
28.6mm D-Shaped Steerer Tube with Small Headset
A 28.6mm D-shaped steerer tube with a small headset provides a more aesthetically pleasing appearance on a slim design metal frame. However, conventional 28.6mm D-shaped steerer tubes tend to sacrifice stiffness and rigidity.
Link

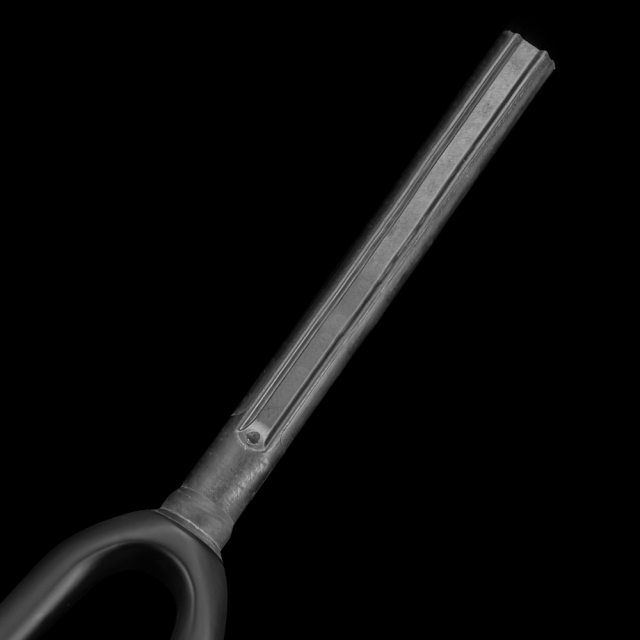

Why 31.8mm D-shape steerer?
By increasing the steerer tube diameter to 31.8mm and D-shaped design conbine together. Through the use of carbon fiber one-piece molding technology and reinforcement design, the FK-00 achieves increased strength and rigidity without adding extra carbon layers to the steerer tube, thus reducing weight and maintaining the desired strength.

With the thicker steerer tube, some models can use a standard, non-offset top cap when paired with a small-sized headset and our dedicated lightweight compression plug, allowing your bike for a more aesthetically pleasing build.

*FK-01 supports electric groupset only.*
Rigidity Optimized
A fork with better rigidity not only enhances steering precision but also provides improved control during braking and when encountering strong impacts, thereby increasing riding safety.

We conducted extensive carbon layup adjustments to find a delicate balance between competitive performance and riding comfort. We also selected forks from some of the high-end bikes from the market as competitive benchmarks.
Recommended Headset Specifications
Safety
SGS, a globally recognized leader in testing, inspection, and certification.
FK-01 fork complies with international standard ISO-4210 also the SGS certificate. Our commitment to quality extends to third-party certification to meet our high product quality standards.
FK-01
Steerer Tube Diameter
31.8mm
RAKE
45mm
Fork Length
370mm
Brake mount
Flat mount
Axle Compatibility
12*100mm(axle is not included)
Weight
370g
Max Tire Size
32mm
Steerer Length
260mm/300mm
